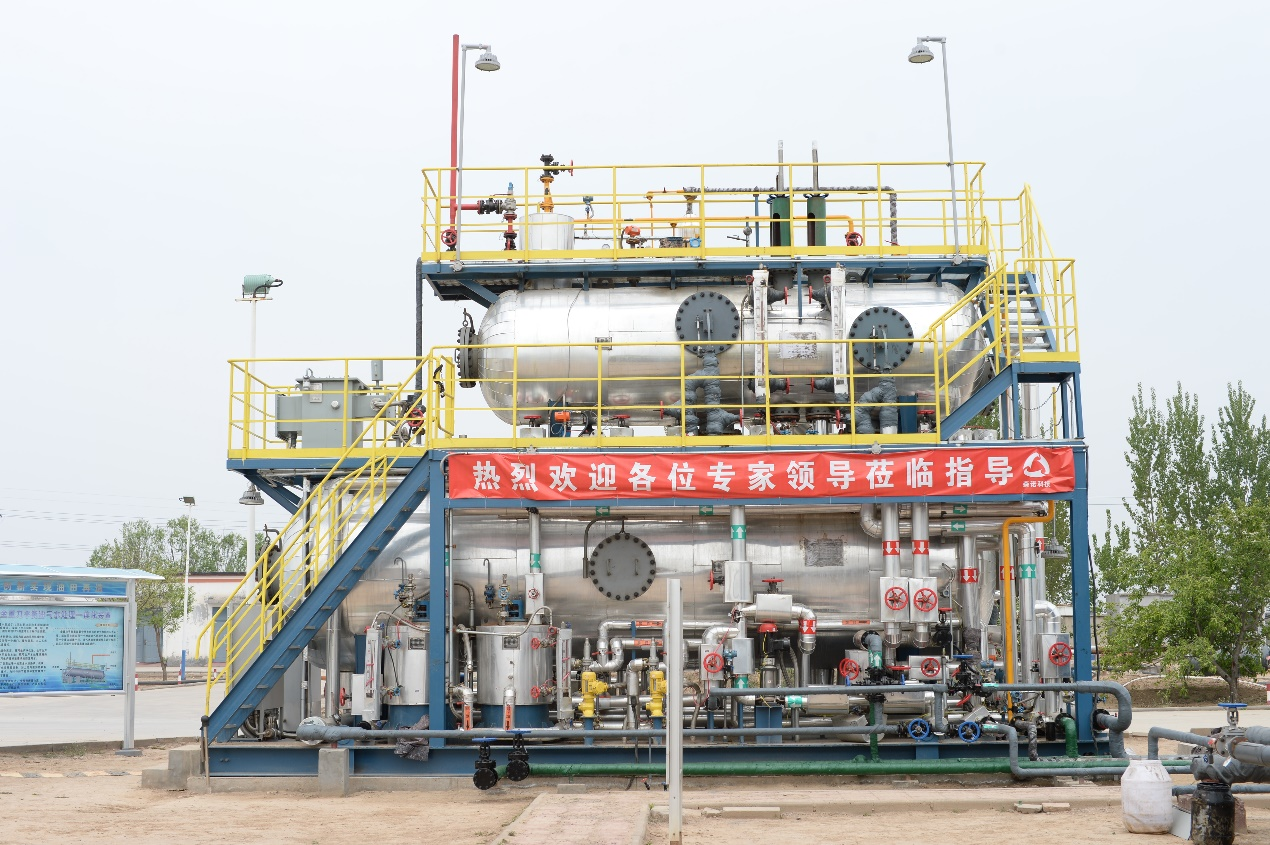

全重力平衡分离脱水一体撬装设备/Full gravity balance separation and dewatering integrated skid-mounted equipment

该设备具有全橇重力流、全平衡操作的独特特点。实现了经长流道油水分离、乳油进一步破乳、含油污水进一步除油、交直流电脱水环节获得符合标准的油气水产出物。拥有自稳流、自配药、直接自加药、间接自加药、自冲砂、自循环处理不合格油、自处理浮油、自加热乳油、自生溶气液、自产溶气气、自气浮、油气水自计量、净化油在线含水检测、油水液位界位自调节、全橇压力自控制、操作数据自处理等功能。全橇实现全部功能过程中没有压力损失，在失电情况下仍能保持半生产，在失压情况下仍能保持正常生产，节能效果十分显著，正常生产无人值守，一个生产橇可替代大部分现有生产环节，其效益得到大幅度提升。
The equipment has the unique characteristics of full sled gravity flow and full balance operation. The Standard Oil, gas and aquatic products can be obtained through oil-water separation in long passage, demulsification of emulsified oil, deoiling of oily sewage and AC/DC electric dehydration. It has the functions of self-stabilizing flow, self-dispensing, direct self-dosing, indirect self-dosing, self-flushing, self-circulating processing unqualified oil, self-treating floating oil, self-heating emulsified oil, self-generating dissolved gas, self-producing dissolved gas, self-floating, self-metering oil-gas-water, on-line water cut detection of purified oil, self-regulating oil-water level, self-controlling full pressure, self-processing operation data and so on. There is no pressure loss in the process of realizing all the functions of the whole sled, half production can still be maintained under the condition of power loss, normal production can still be maintained under the condition of pressure loss, the energy saving effect is very remarkable, no one is on duty in the normal production, a production sled can replace most of the existing production links, its efficiency has been greatly enhanced.

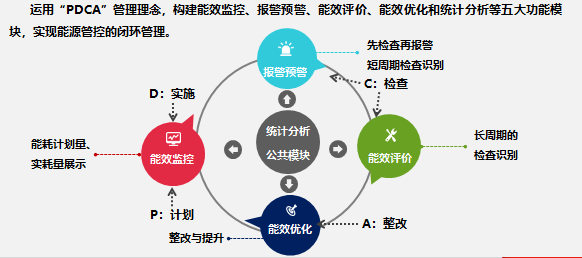

能源管控中心/Energy Control Center

运用“PDCA”管理理念，建成“能耗展示、能效报警、能效评价、能效优化、统计查询”五个功能模块，实现“能流可视化、在线可优化、能效最大化”。2020年，能源管控系统在胜利油田十六家开发单位上线运行，预计节约能耗成本降低油田盈亏平衡油价3.5美元，实现10%的年节电能力。该产品的大规模推广实施，探索出了油田企业能源管控信息化的建设路径，填补了行业技术空白。
Based on the concept of “PDCA”, five functional modules of “Energy consumption display, energy efficiency alarm, energy efficiency evaluation, energy efficiency optimization and statistical inquiry”are built to realize “Energy flow visualization, online optimization and energy efficiency maximization”. In 2020, the energy management and control system will be put into operation in 16 Shengli Oil Field Development Units. It is expected to save energy cost, reduce oil field break-even oil price by $3.50, and achieve 10% annual energy saving capacity. This product’s large-scale promotion implementation, has explored the oil field enterprise energy management information construction path, has filled the profession technology blank.

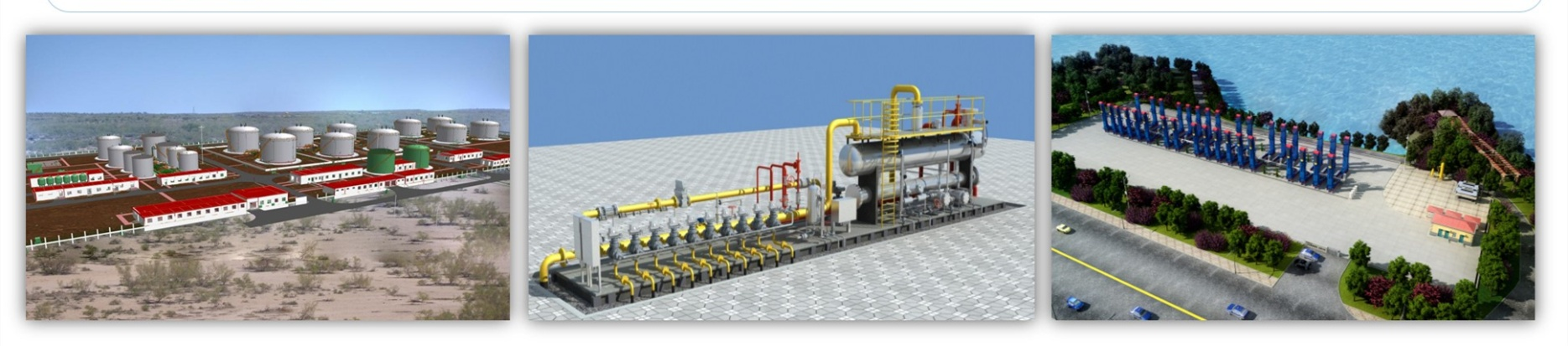

胜利油田大地面规划/Shengli Oil Field Land Use Planning

大地面规划工作以技术创新为引领，用“区域整合”的规划理念，打破行政管理单元，将老区打造为区域中心站模式的高效集约油田。规划针对城乡发展矛盾类、资源整合类、提质增效类产区特点，按照“区域统筹、简化功能、优化流程、标准设计、质量效益、安全绿色”的原则，促进地面系统一体化设备的研发，促进新能源的清洁利用。
With the innovation of Technology and the planning idea of “Regional integration”, the land surface planning work breaks the administrative unit and turns the old area into an efficient and intensive oil field. According to the characteristics of urban-rural development contradiction, resource integration, quality improvement and efficiency-increasing production areas, according to the principle of “Regional overall planning, simplification of functions, optimization of processes, standard design, quality benefit, safety and green”, promote the development of ground system integration equipment, promote the clean use of new energy.

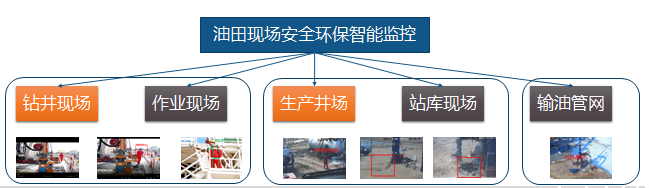

安全生产管控信息化/Informationization of Production Safety Management and control

该安全管控产品系列包括智能化安全巡检系统、安全“双体系”信息系统、无人机巡检系列产品、微定位智能化人员管理系统、不安全行为智能识别系统、虚拟VR安全培训系统、智能化安全帽、智能化防疲劳驾驶系统等。同时，结合油田实际的安全管理需求，开发研制了一系列的安全管理信息系统，包括基层现场安全管理系统、安全监督管理系统、承包商管理系统、QHSSE资料无纸化系统、隐患排查治理系统等，并在中石化相关单位进行了实际推广应用，取得良好的效果，在为公司创造效益的同时，提升了油田单位的安全管理水平。
The series of safety management and control products include intelligent safety patrol system, safety “Double system”information system, unmanned aerial vehicle patrol system, micro-positioning intelligent personnel management system, unsafe behavior intelligent identification system, virtual VR safety training system, intelligent safety helmet, intelligent anti-fatigue driving system, etc. . At the same time, a series of safety management information systems have been developed according to the actual safety management requirements of oil fields, iNCLUDING GRASS-ROOTS ON-SITE Safety Management System, safety supervision and management system, contractor management system, Qhsse data paperless system, hidden trouble management system, etc. , achieved good results, in the company to create benefits at the same time, improve the safety management level of oilfield units.

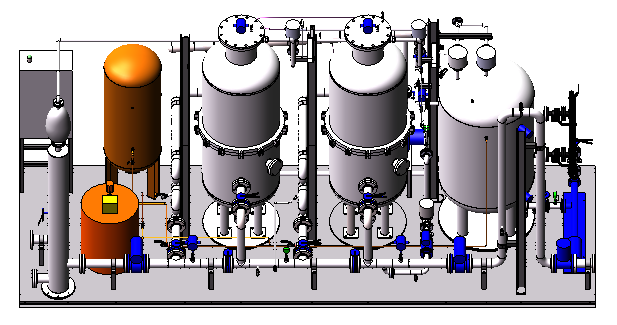

压力式高效气浮装置/Pressure type high efficiency air flotation device (SNFP)

设备将溶气气浮、微气泡筛选、共聚反应等技术融为一体，整套装置为密闭式带压系统，实现对采出水的快速破乳，对水中含油、悬浮物进行高效去除。设备占地小，可快速安装，适用于海上平台等空间紧张的工况；能实现标准化设计、工厂化预制、模块化施工、信息化管理。
The equipment integrates dissolved air floatation, micro-bubble screening, copolymerization and so on. The whole equipment is a closed pressure system, which can realize the rapid demulsification of produced water and the efficient removal of oil and suspended matter in water. The equipment is small, can be installed quickly, suitable for the space-tight working conditions such as offshore platform, and can realize standardized design, factory prefabrication, modular construction and information management.

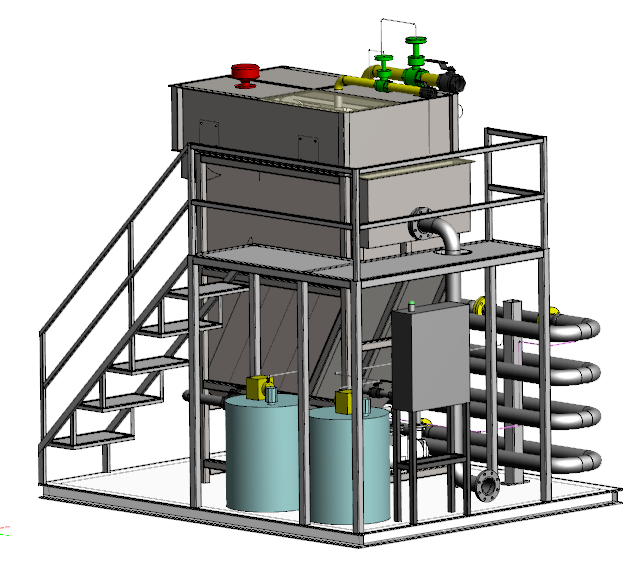

氮气再循环高效空化气浮装置/Nitrogen recirculation high efficiency cavitation air floatation device (SNF)

采用微压密闭结构、淹没式出水、避免曝氧；增设实现氮气再循环，解决VOC问题；设备通过融合利用水力空化单元，大幅提升破乳效果，较好地解决稠油含聚采出水处理难题。
It adopts micro-pressure closed structure, submerges water outlet and Avoids Exposure to oxygen, ADDS nitrogen recirculation to solve VOC problem, and uses hydraulic cavitation unit to enhance demulsification effect, the problem of treatment of produced water from heavy oil accumulation is solved well.

气浮除油沉降罐/Air Flotation deoiling settling tank (SNFT)

该设备可以充分利用油田老旧设施，只需对原有油罐、水罐优化改造，在大幅降低工程造价的基础上可将污水处理设施提效50%以上。根据油田“十四五”规划，部分联合站降级为分水站，部分闲置的油罐可改造为气浮除油沉降罐，充分利用已有设施，提升水处理效果。
The equipment can make full use of the old facilities of oil field, only need to optimize the original oil tank and water tank, on the basis of greatly reducing the cost of the project, the efficiency of sewage treatment facilities can be increased by more than 50% . According to the “14th five-year plan”of the oilfield, some of the combined stations can be upgraded to water-separating stations, and some of the idle oil tanks can be transformed into air-floating oil-removing and oil-settling tanks.

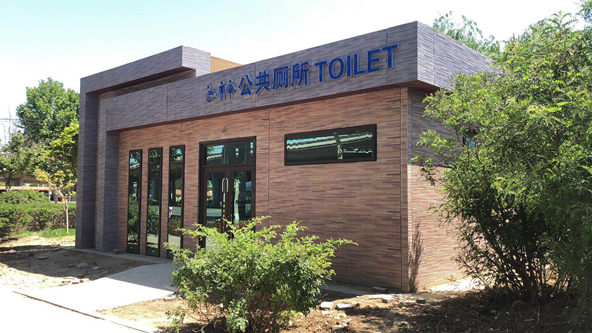

免水冲环保公厕所/Water-free and environmentally friendly public toilets

采用微生物菌剂降解技术，整体可移动吊装，无需用水，实现生物降解粪便。降解过程全密闭，避免了蚊蝇滋生，无污水外排，残渣半年清理一次，可循环利用。目前孤东采油厂、东辛采油厂、纯梁采油厂、现河采油厂、护卫中心、大港油田、海南炼化等多个单位安装157套使用，反馈使用效果良好。
Using microbial microbial agent degradation technology, the whole mobile lifting, without water, to achieve the biodegradation of faeces. The degradation process is completely sealed, avoiding the breeding of mosquitoes and flies, no sewage discharge, and the residue is cleaned once every six months, which can be recycled. At present, 157 sets are installed in Gudong oil production plant, Dongxin oil production plant, Chunliang oil production plant, Xianhe oil production plant, guard center, Dagang Oil Field, Hainan refinery and so on.

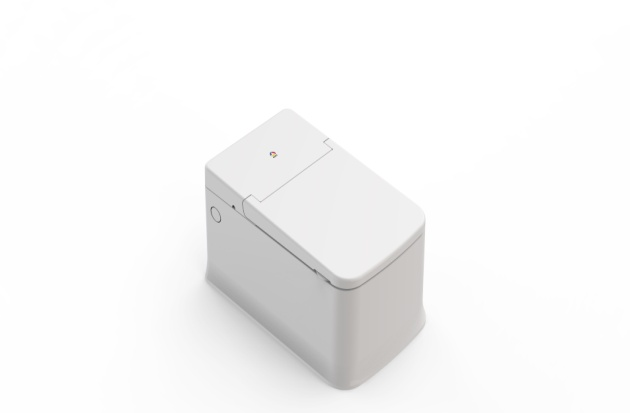

家用免水冲智能环保厕具/Intelligent environment-friendly toilet with no water flushing for household use

联合国内顶级家电设计团队研发，适用于普通家庭、康养医疗机构等场所。无需水冲、无需配套排污管网，方便安装，接电即可使用，采用智能控制技术，恒温、恒湿、无异味。第二代产品已投放东营市农村区域，目前第三代家用免水冲智能环保厕具已进入生产阶段，未来市场前景广阔。
United Nations top home appliance design team research and development, suitable for ordinary families, health care institutions and other places. No water flushing, no need for supporting sewage pipe network, convenient installation, power can be used, using intelligent control technology, constant temperature, constant humidity, no odor. The second generation products have been put into the rural areas of Dongying. At present, the third generation household water-free flushing intelligent environmental protection toilet has entered the production stage, and the future market has broad prospects.

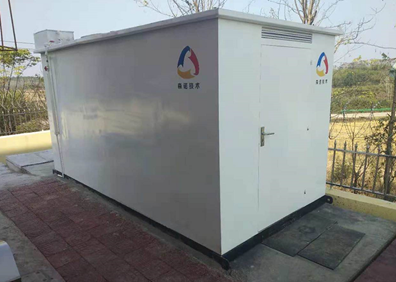

一体化污水处理设备/Integrated wastewater treatment plant

采用“微生物+膜”处理工艺，将生活污水进行生化降解处理，处理指标可达到《城镇污水综合排放标准》一级A的标准。设备有先进的控制系统，可连续自动运行并实现远程控制。已在管道储运公司、天然气分公司等单位9个场站应用，效果良好。
Using the "microbial membrane" treatment process, the domestic sewage is treated by biochemical degradation, and the treatment index can reach the standard of Grade A in the Comprehensive Discharge standard of Urban Sewage. The equipment has advanced control system, can run automatically continuously and realize remote control. It has been applied in 9 stations of pipeline storage and transportation company, natural gas branch company and other units with good effect.

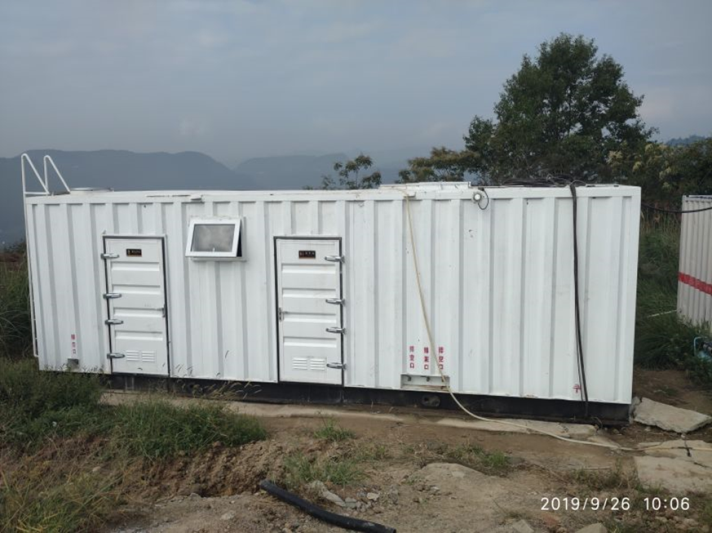

循环水冲环保厕所/Recycled water flushing to eco-friendly toilets

该设备集水冲厕所、化粪池、污水处理设备于一体，独立成橇，使用中水循环，无需外接清水，适用于野外施工现场、中大型生活点等远离市政管理网络的地区。现已供应胜利石油工程公司、中原石油工程公司、西南石油工程公司等钻井工作队，有效的解决了站队生活污水的处理“烦恼”，节水效益显著。
The device integrates water flushing toilet, septic tank and sewage treatment equipment into one, independent sled, the use of intermediate water circulation, without external water, suitable for field construction sites, medium and large living areas away from the municipal management network. Shengli Petroleum Engineering Company, Central Plain Petroleum Engineering Company, Southwest Petroleum Engineering Company and other drilling teams have been supplied. They have effectively solved the “Troubles”in the treatment of station sewage and achieved remarkable water-saving benefits.

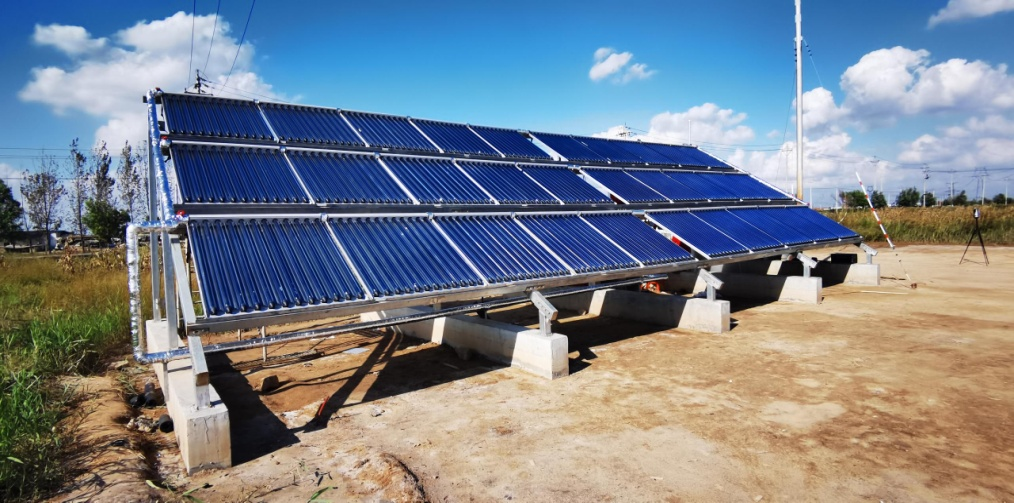

油田站场光热循环加热装置/Heating device of photothermal cycle in oil field station

该装置可实现太阳能绿色加热完全替代传统能源加热。设备采用的CPC热管集热效率达到70%以上，实现了高效集热；热管内采用正压介质，实现了15年以上长寿命高效运行；集热器的自限温功能，有效防止系统过热，实现了安全可靠；装置采用光热+谷电蓄热方式，最大程度降低成本；利用手机APP操控及报表查询，实现无人值守；橇块设计，方便场站间转运。
The device can realize the solar energy green heating completely replacing the traditional energy heating. CPC heat pipe is used to collect heat more than 70% efficiently, positive pressure medium is used to collect heat more than 15 years, self-temperature-limiting function of collector is used to prevent the system from overheating, the device adopts light-heat + valley electric heat storage mode to reduce the cost to the greatest extent, uses mobile phone APP to control and check report forms to realize unattended operation, skid block design to facilitate inter-station transfer.

超低氮燃烧器/Ultra low nitrogen burner

该设备适用于各类燃气锅炉、加热炉、相变炉、取暖炉、多功能罐等，低氮、高效、精准加热，烟气排放指标远低于政策标准要求，氮氧化物排放低于15mg/m3，温度数字调节、远程监控，操作简捷，同时具备燃气压力监控保护、水温监控及超温保护、风压保护、火焰状态监测及熄火保护、电子点火程序控制等，安全管控自动化水平高，完全实现无人值守。
The equipment is suitable for all kinds of gas-fired boiler, heating furnace, phase change furnace, heating furnace, multi-function tank and so on, low nitrogen, high efficient, accurate heating, the smoke emission target is far below the policy standard, the nitrogen oxide emission is less than 15mgm3, temperature digital regulation, remote monitoring, simple operation, with gas pressure monitoring protection, water temperature monitoring and over-temperature protection, wind pressure protection, flame condition monitoring and extinguishing protection, electronic ignition program control, etc. , high Automation level of Safety Management and control, fully realize unattended.
